Infrastructure As Code using AWS CDK POC

Welcome to my workshop this is working code. It will create a CI/CD pipeline to deploy bunch of AWS resources in cloud. This is a POC to demonstrate Infrastructure As Code (IaC) to deploy resources in AWS cloud using AWS CDK written in typescript.

http://www.rupeshtiwari.com/aws-cdk-poc/

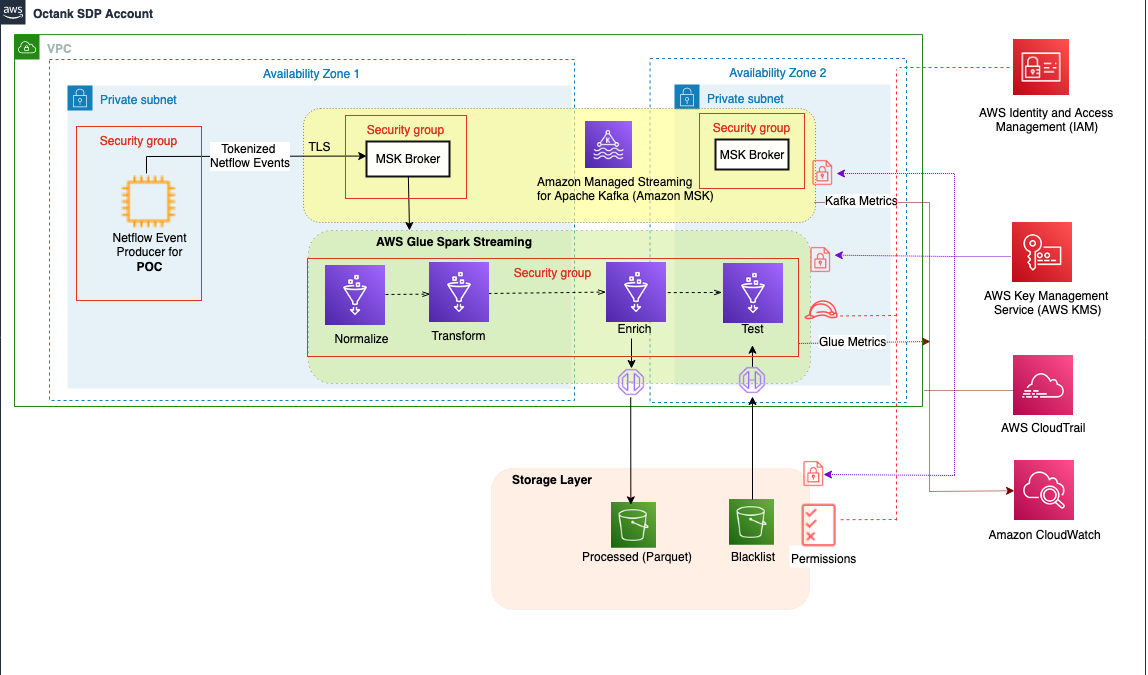

Architecture Diagram

Prerequisite

AWS account
Update ~/.aws/credential file follow this guideline to setup your local environment for AWS CDK

Getting Started with this repository

# clone the repo
git clone https://github.com/rupeshtiwari/aws-cdk-poc

# install node packages
npm ci

# build code
npm run build

# create cloudformation template
cdk synth

# deploy cloudformation template (this will create a code pipeline to deploy bunch of stacks listed below)
cdk deploy

AWS CDK Stacks created in this project

Below are the stacks to create AWS resources like VPC, Cloud9 environment, Roles, S3 buckets, Glue job, AWS MSK cluster.

VPC to create private cloud
Cloud9 for development and publishing events to kafka
Roles one role for glue job
S3Bucket buckets required for storing scripts and output files
Glue to run Spark stream job
AWS MSK to host broker for messaging framework built on kafka

AWS CodePipeline

Once you deploy your ckd it will create a code pipeline that will build and deploy the entire stack. This will create CI/CD setup so whenever you check-in the code it will build and deploy resources. It takes around 30-40 minutes to deploy entire stack. Especially AWS MSK that takes around 15-20 minutes to deploy.

👉 Below are the stages for our code pipeline

1st Source Stage

I am using GitHub as my source. As soon as I check-in new code it will trigger the pipeline

2nd Build Stage

Using AWS CodeBuild to build my AWS CDK project it will npm run build and cdk synth my cdk project. And create cloudformation template put it as encrypted assets in the S3 bucket.

3rd Deployment Stage for Dev environment

Above are the stacks going to be deployed in DEV environment.

4th Deployment Stage for Prod environment

Similar stacks will be deployed in prod environment after manual approval.

CDK Project details

This is a blank project for TypeScript development with CDK.

The cdk.json file tells the CDK Toolkit how to execute your app.

Useful commands

npm run build compile typescript to js
npm run watch watch for changes and compile
npm run test perform the jest unit tests
cdk deploy deploy this stack to your default AWS account/region
cdk deploy --all deploy all stacks to your default AWS account/region
cdk diff compare deployed stack with current state
cdk synth emits the synthesized CloudFormation template
cdk destroy delete stack

git pull && git add . && git commit -m 'updates' && git push
